Yamaha XDA-QS5400 Amplificatore con MusicCast Multi-Room Streaming

Yamaha XDA-QS5400 Amplificatore con MusicCast Multi-Room Streaming

Progettato e pensato interamente per la custom installation, Yamaha XDA-QS5400 Amplificatore con MusicCast Multi-Room Streaming è la soluzione definitiva integrata per diffondere un suono straordinario in tutti gli ambienti dello spazio domestico.

Le sue ridotte dimensioni lo rendono utilizzabile in ogni contesto. Il design non lascia presagire l'estrema potenza del sistema che copre lo streaming audio di quattro stanze e otto canali di amplificazione di qualità audiofila.

Yamaha XDA-QS5400 Amplificatore con MusicCast Multi-Room Streaming è dunque perfetto per essere installato all'interno del prezioso armadio rack. La sua incredibile facilità di espansione permette di utilizzare le diverse unità QS per ampliare la copertura fino a 32 zone con riproduzione simultanea dei gruppi sincronizzati fino a un massimo di 20 zone per gruppo.

Il QS, inoltre, ha quattro zone pre-out che ne abilitano l'abbinamento con l'amplificatore multi-room Yamaha XDA-AMP5400RK. Si otterranno così maggiore potenza o altri collegamenti di diffusori per case molto grandi.

Con Yamaha XDA-QS5400 Amplificatore con MusicCast Multi-Room Streaming ascolti la musica che vuoi: accedi a tutta la musica preferita, inclusi i servizi musicali in streaming integrati, la tua play list su smartphone, tablet e dispositivi di archiviazione di rete.

Caratteristiche tecniche

Network Section

File Format MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit

Ethernet Yes (2 terminals)

AirPlay Yes

Audio Specifications

Channel 8 channel (2 channel x 4)

Minimum Speaker load Capability 4 ohm

BTL Connection Yes

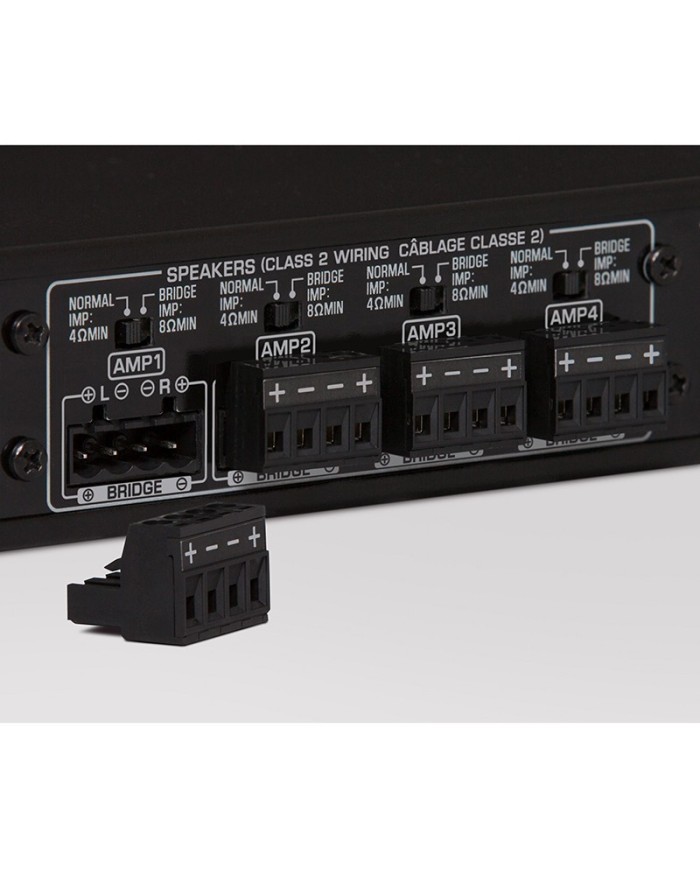

Speaker Output Terminal 4 (Euroblock)

Preout Terminal 4

Audio Input Terminal RCA: 2 (CUT IN, AUX), USB: 4

Audio Output Terminal RCA (2-ch through out): 2 (CUT IN, AUX)

Trigger In / Out 0 / 4

Remote In / Out 1 / 1

Chime 4

Rated Output Power (1 kHz, 0.9% THD, 2ch driven) Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W

Rated Output Power (1 kHz, 0.9% THD, 1ch driven) Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W

Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W

Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst) Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W

Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W

Maximum Effective Output Power [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W

Total Harmonic Distortion [SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005%

Frequency Response [1 kHz + 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz

Signal to Noise Ratio [PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB

Rated Output Level / Output Impedance [PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm

Maximum Output Level [PRE OUT L / R, 0.9% THD] 4.0 V

Maximum Input Signal [PRE OUT L / R, 0.9% THD] 2.4 V

Gain [SP OUT 1 V Input] 25.8 dB

Input Sensitivity [1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V

Web Setup Yes

Direct Mode Yes

Monaural Downmix Yes (stereo playback or monaural downmix selectable)

Compressed Music Enhancer Yes

Volume Adaptive EQ Yes

Volume Control Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB ~ 0 dB, Step: 0.5 dB

EQ Characteristics [Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 1.1 kHz, [Treble] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 3.5 kHz

Bass Extension Yes

General

Power Consumption 130 W, [All Zone On] No Signal Condition: 40 W, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W

Standby Power Consumption Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W

Power Management (Auto Power Standby) 5 / 20 min, 2 / 4 / 8 / 12 hours selectable

Dimension (W × H × D) mm [Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8”

Weight 6.3 kg;
